Browse through our Star CNC product catalogue to find your best fit.

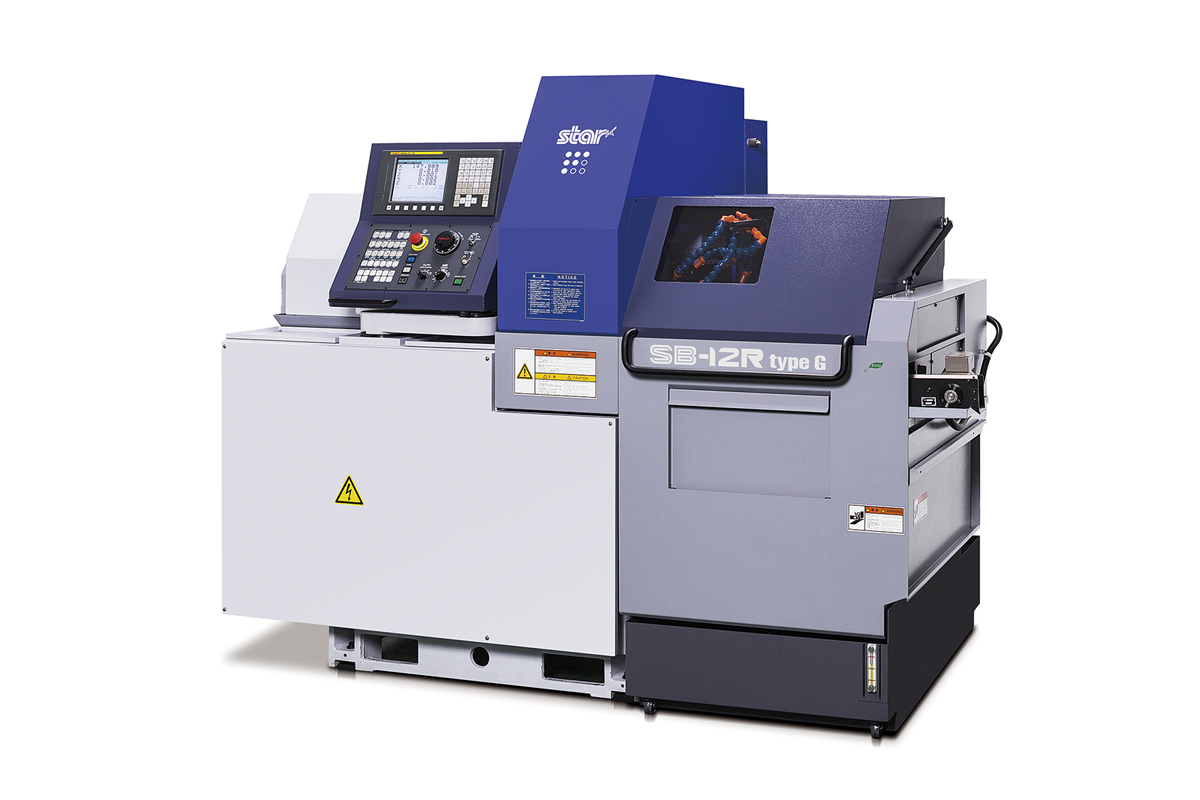

SB-12R Type G CNC
Swiss-type Automatic Lathe
Popular 12mm machine for manufacturing small diameter components for use in a variety of industries.
learn more
- Modular machine design flexibility greatly benefits the machining of small diameter parts
- Ability to switch between Guide Bush and Non Guide-Bush Modes improves machining efficiency
- Main spindle with 17 tool positions extends manufacturing possibilities
- Fully independent sub-spindle with driven tool capability increases the amount of overlapped operations that can be carried out

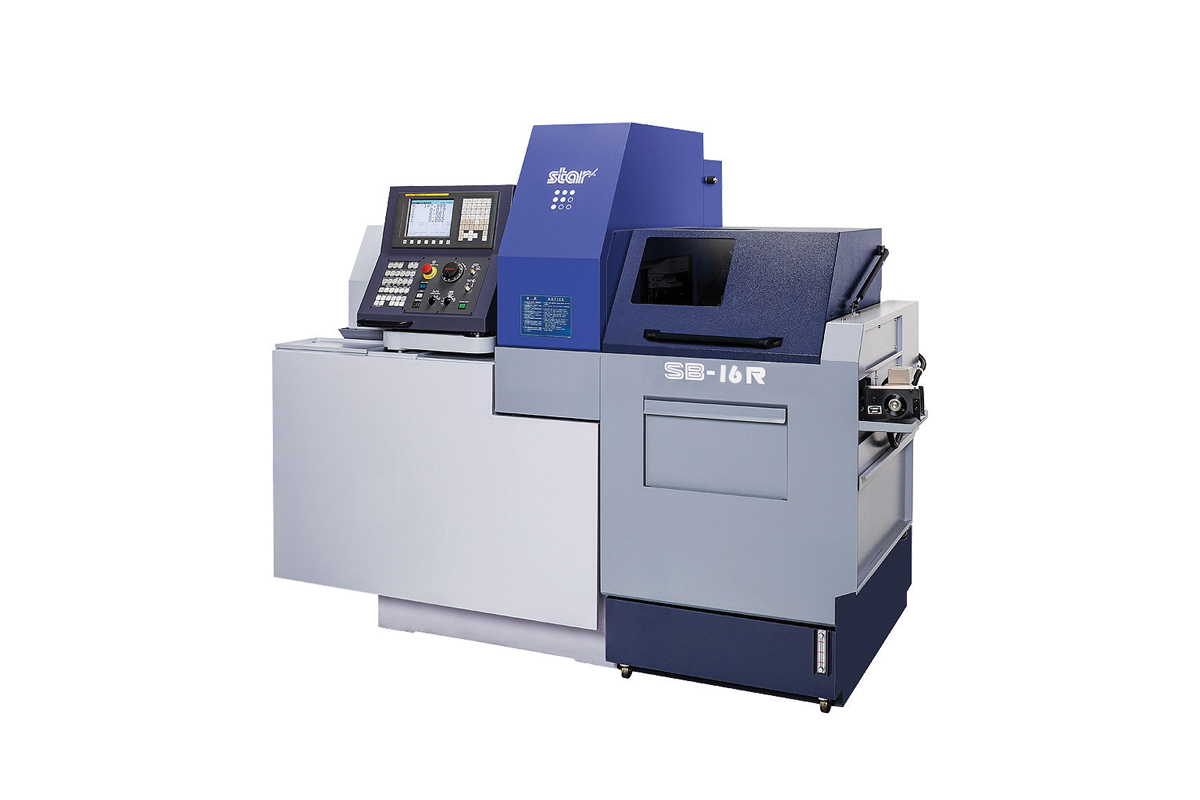

SB-16R Type G CNC
Swiss-type Automatic Lathe
The SB-16R Type G offers a wide range of machining operations that is made possible with the unique Guide Bush/Non-Guide Bush switching function.
learn more
- Maximum machining diameter 16mm
- 4 types of tool posts available from which to select the tooling layout most suited to the required machining applications
- Flexible tooling layouts allow for endless variations of complex machining
- Flexible tooling layouts include the ability to combine the selection of tool post and cartridge unit
- Maximum tooling variations yield performance that meets manufacturing needs across multiple industries
SB-20R Type G CNC
Swiss-type Automatic Lathe
The SB-20R Type G offers a wide range of machining operations that is made possible with the unique Guide Bush/Non-Guide Bush switching function.
learn more
- Maximum machining diameter 20mm
- Flexible tooling layouts allow for endless variations of complex machining
- 4 types of tool posts available from which to select the tooling layout most suited to the required machining applications
- Maximum tooling variations yield performance that meets manufacturing needs across multiple industries
- Flexible tooling layouts include the ability to combine the selection of tool post and cartridge unit
SP-20/23 Type C CNC
Swiss-type Automatic Lathe
The awaited lathe that supports tool posts for diverse machining needs up to 1 inch has arrived!
Machine configuration that supports machining up to 25.4 mm dia. (OP), and high precision realized through various measures against heat generation
learn more
High Functionlities:
- Equipped with a 7-spindle cross drilling unit at the rear of the
front-side tool post. A wide variety of tool units can be mounted
on the 5 cartridge positions. - Drive system for power-driven tool installed as standard for the
4-spindle backworking unit. - Can equip with Step Cycle Pro., which is effective for
chip-breaking. (Optional)
High Precision:
- The data from thermal sensors installed on various machine
positions achieve highly accurate and flexible thermal
displacement correction. - Prevents excessive heat by using oil mist cooling of the
power driven tool gear box on the front tool post. - Built-in sensor on main/sub spindles. Realizes improved
indexing accuracy.
Scalability:
- With oversize specifications, capable of machining up to
25.4 mm dia. - Equipped with G.B. / N.G.B. switching function. Capable of
machining at optimal specifications according to the full
dimensions of the machined parts. - For the tool holder, select from the 8-station type (□12 mm)
or the 7-station type (□16 mm x 3, □12 mm x 4) according to
the purpose for turning. - For the sleeve holder, select from the 4-spindle or 5-spindle
type according to the purpose for drilling.
DOWNLOAD PRODUCT SPECIFICATIONS

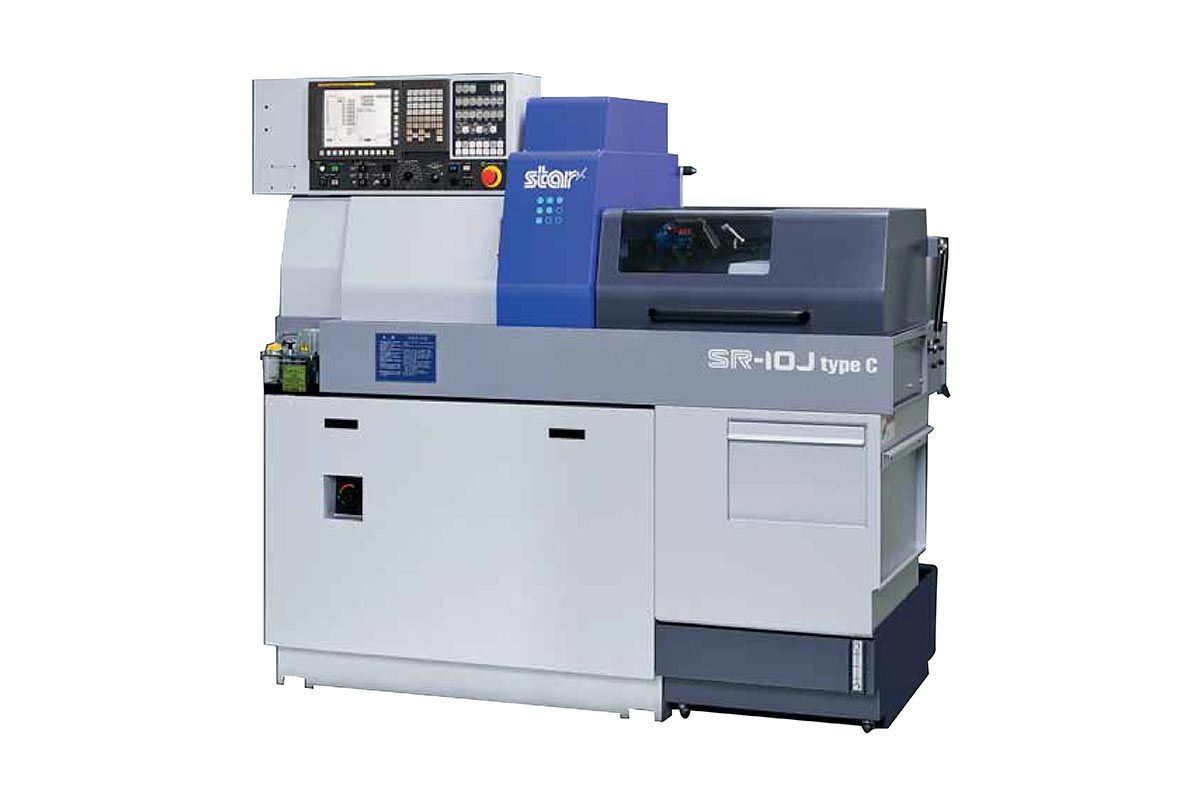

SR-10J Type C CNC
Swiss-type Automatic Lathe
High performance machine with enhanced capability and operability for machining small diameter parts.
learn more
- C-axis control (with clamp) for both the main and sub spindle enhances secondary machining
- High (15,000 RPM) spindle speed
- Dynamic, efficient machine design for high accuracy machining for small parts
- 3-spindle drilling unit for secondary machining
- Standard manual pulse generator facilitates installation

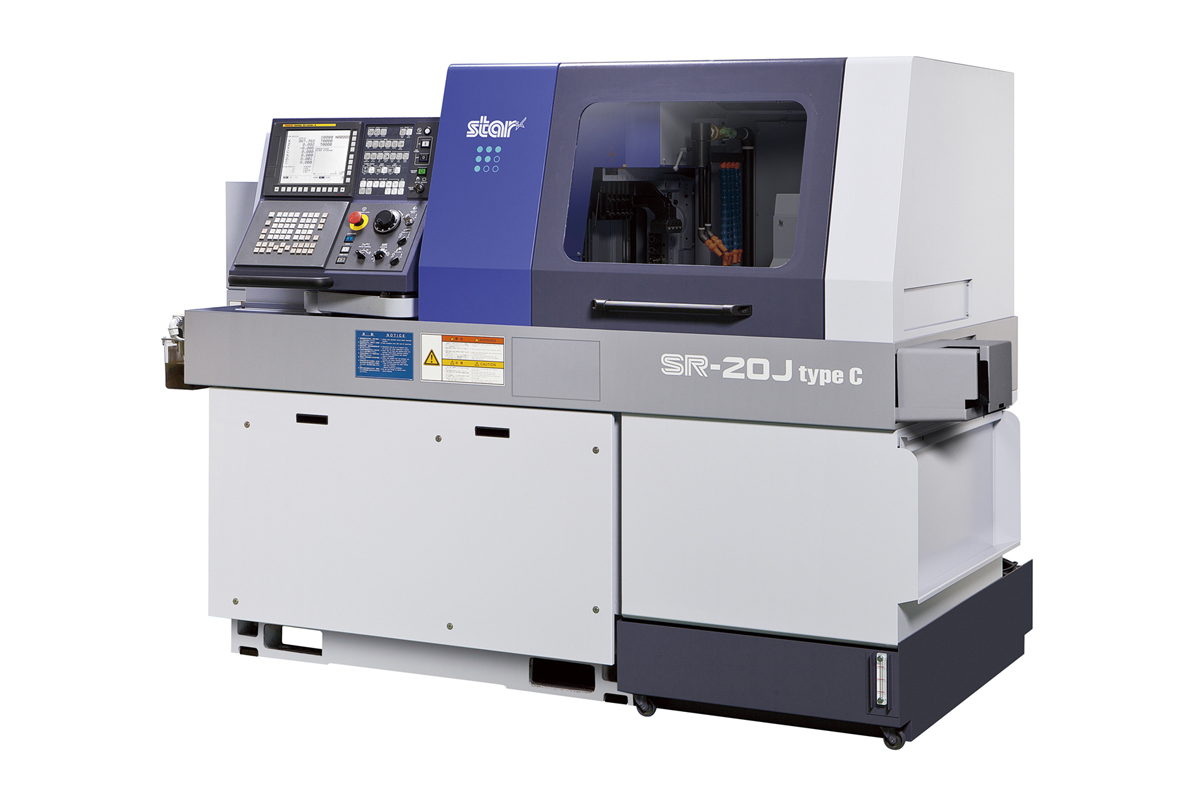

SR-20J Type C/N CNC
Swiss-type Automatic Lathe
Optimum cost performance whether you choose the Swiss Type C or Non-Guide Bush Type N machine.
learn more
- Innovative machine configuration provides high productivity by significantly reducing non-cutting time
- Unique “slanted dovetail slideway structure” tool post design helps maintain dimensional accuracy while also extending cutting tool life
- Enhanced tooling capitalizes on basic and advanced machining applications
- Optional 3-spindle back drill unit and back working cross drill unit increases the flexibility of operations carried out in the sub spindle

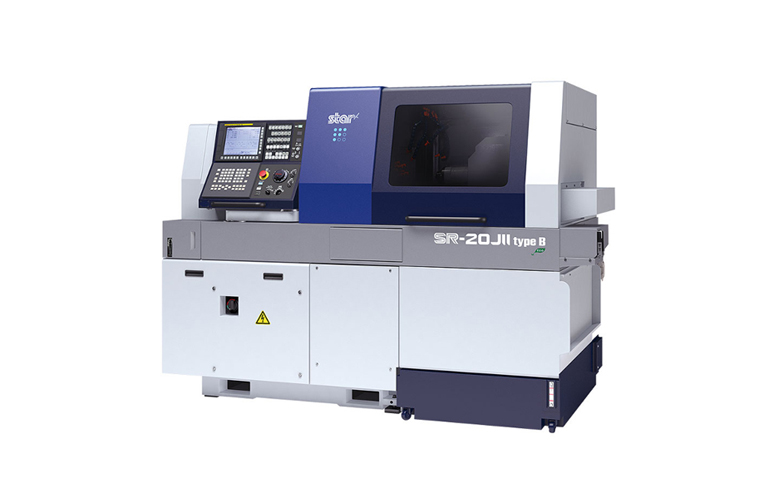

SR-20JII Type C/N CNC
Swiss-type Automatic Lathe
The new upgrade to the SR-20J model provides increased flexibility, more tooling configurations, and high rigidity with high accuracy.
learn more
- Large tooling capacity for main operations
- 8-Station back-working unit with Y-axis and increased power
- Slanted dovetail construction on tool post provides high rigidity
- Switchable G.B. and N.G.B. change-over

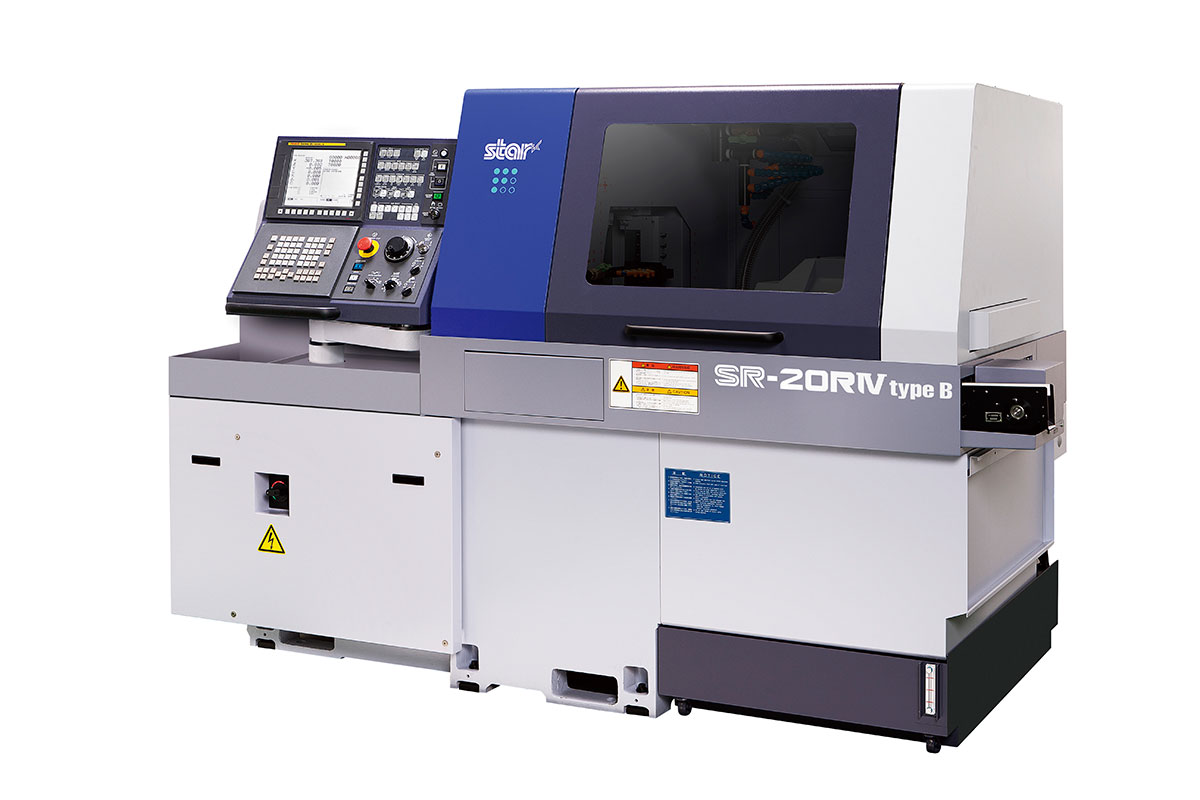

SR-20R IV Type A & B CNC
Swiss-type Automatic Lathe
Complex machining functions adaptable to multiple industries where precision and accuracy are essential.
learn more
- I27-position tool station accommodates up to 41 tools
- Full B-axis for cross drilling/milling with a variety of tooling options
- Tool post designed especially for backworking, with Y-axis control function as standard
- Rigid construction provides stability for very close tolerance work and extended tool life
- Built-in motor and built-in sensor for improved indexing accuracy
- Equipped with Star Motion Control System for higher accuracy and easier operability

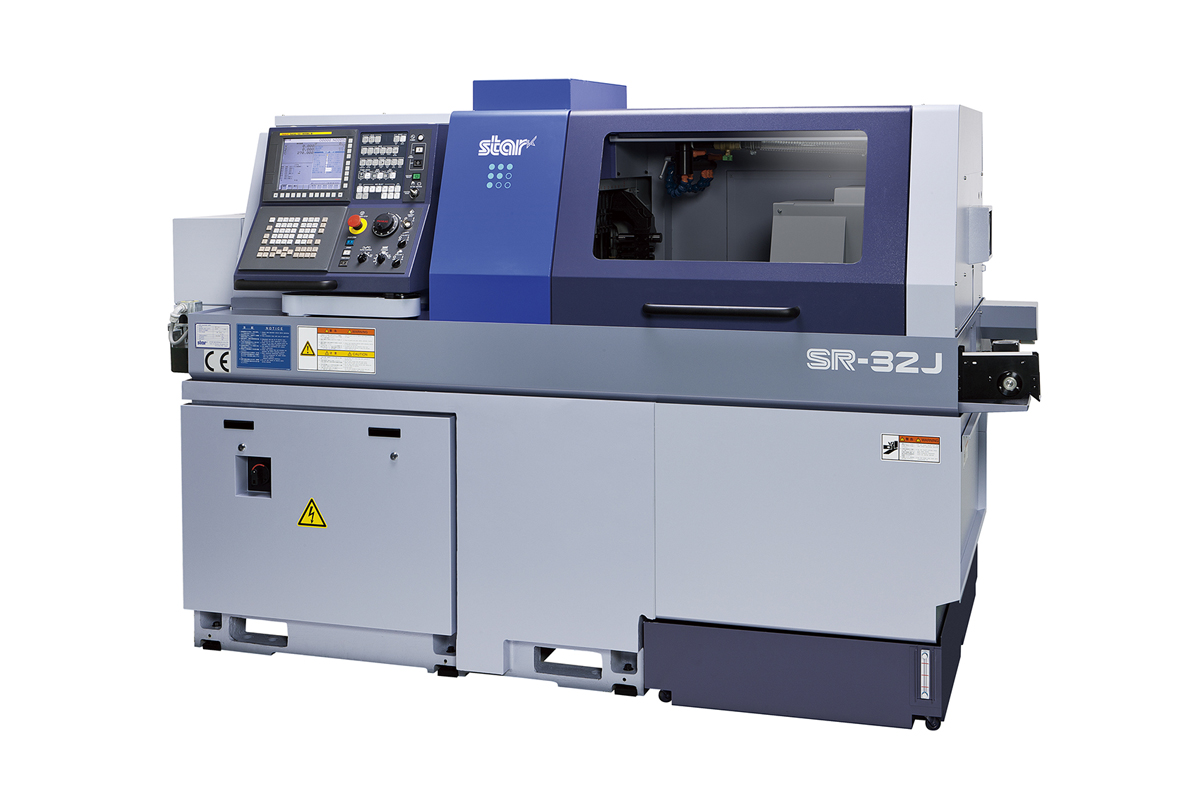

SR-32J Type N CNC
Swiss-type Automatic Lathe
New generation design offers power with maximum rigidity and high output drives that are engaged for large diameter components.
learn more
- Excellent balance of operability, high productivity and efficiency
- High productivity is enhanced by the advanced CNC unit
- High rapid feed rate and a power-driven sub-spindle tool greatly reduce processing time
- Newly mounted movable operation panel enables optimal positioning at all times
- SR-32/JN is especially designed for complex large-diameter short workpiece machining

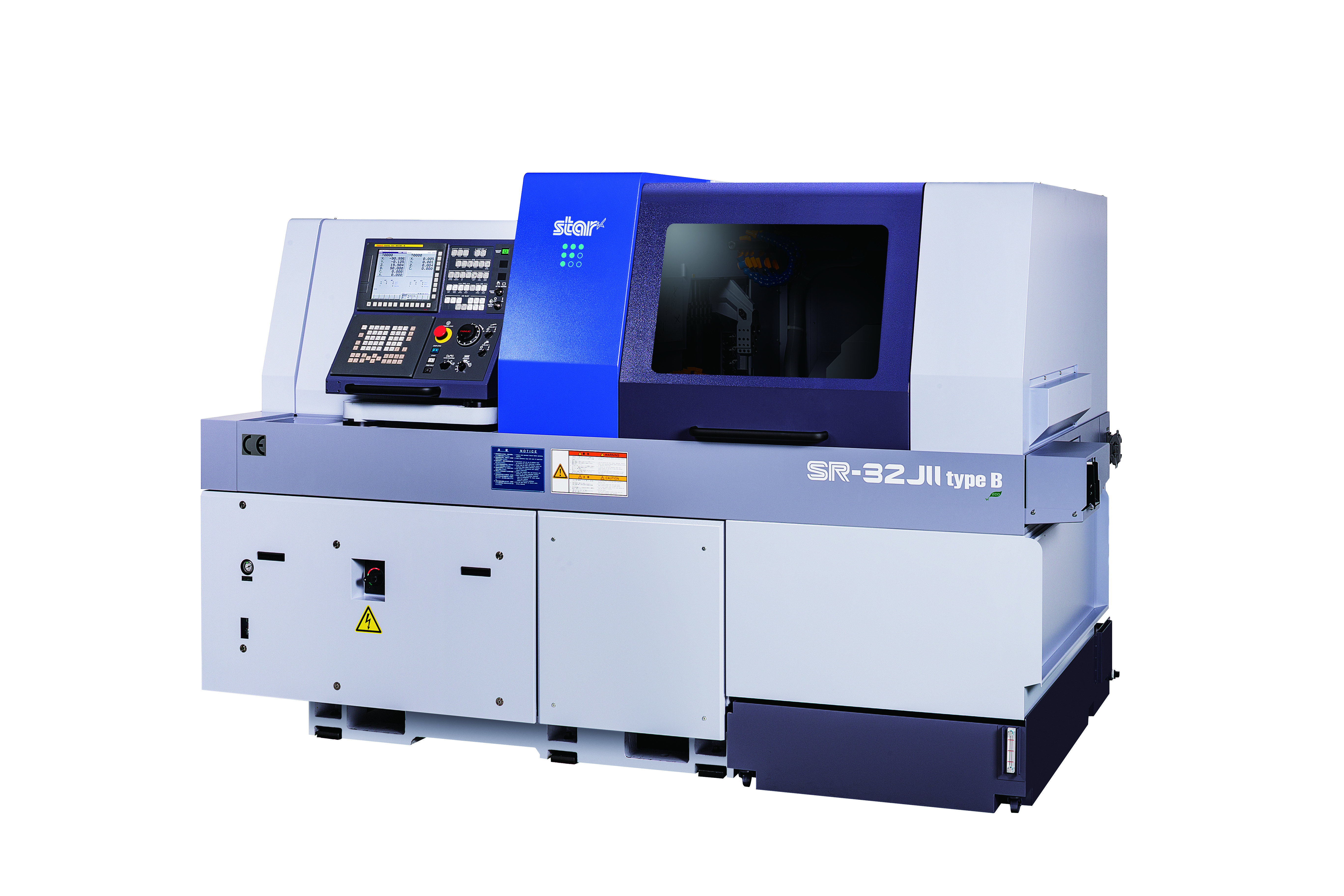

SR-32JII CNC
Swiss-type Automatic Lathe
The new modular design increases the machine flexibility and offers higher rigidity, increased productivity and higher accuracy.
learn more
- Excellent balance of operability, high accuracy and efficiency
- High productivity is enhanced by the advanced CNC unit
- High rapid feed rate and a power-driven sub-spindle tool greatly reduce processing time
- The movable operation panel enables optimal positioning best suited to the operator
- Type B backworking 8-spindle unit can accommodate a power tool unit in all positions as standard

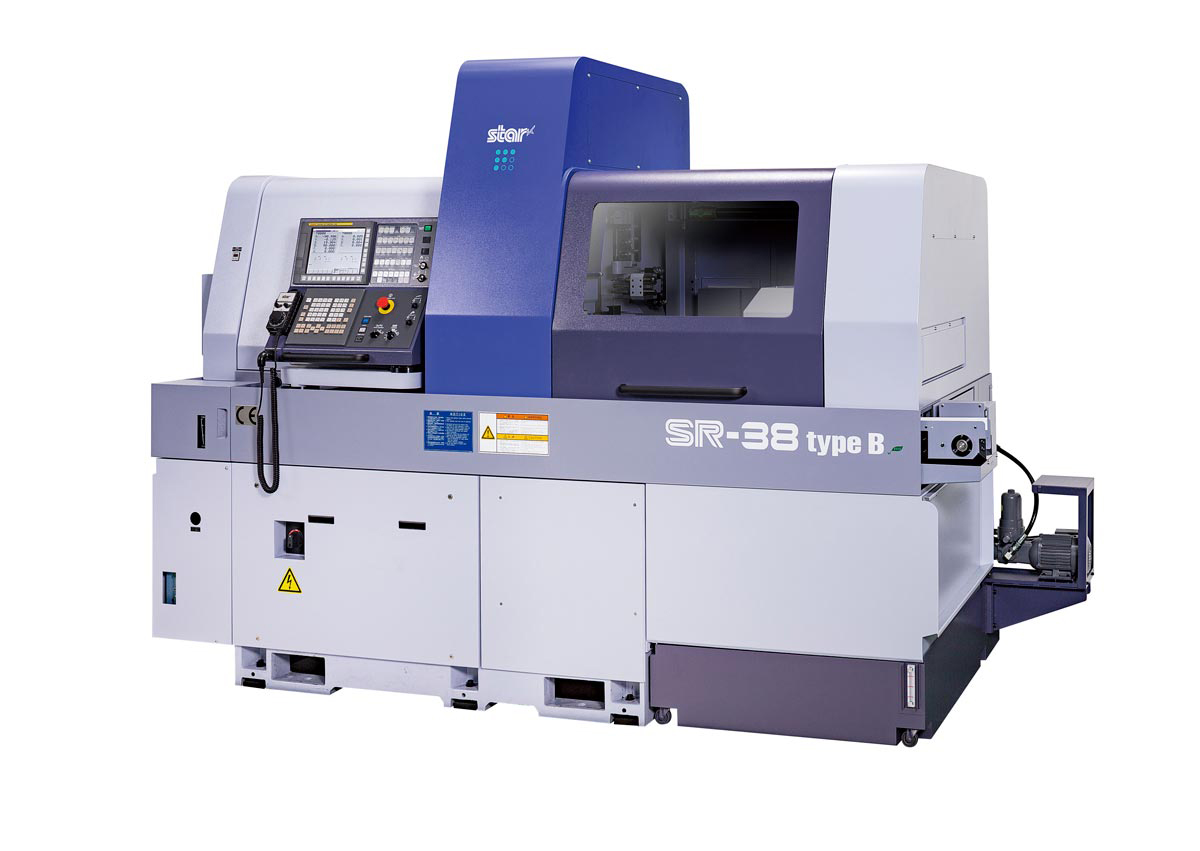

SR-38 Type A/B 10-Axis CNC
Swiss-type Automatic Lathe
Star CNC technology revolutionizes complex machining for manufacturing industries, including aircraft, automotive, medical, and others.
learn more
- Rigid machine construction handles bar stock up to 1-1/2” (1.500) diameter
- Built-in main- and sub-spindles and high tool post rigidity ensure exceptional accuracy
- Designed for two-tool turning, heavy material removal, and/or rough and finished tooling
- 8-spindle backworking unit for complex parts production in one operation with the precision and accuracy required by quality critical applications
- SR-38 Type B features B-axis versatility
- Proprietary Motion Control System significantly reduces idle machine time
- Environmentally-friendly low energy consumption

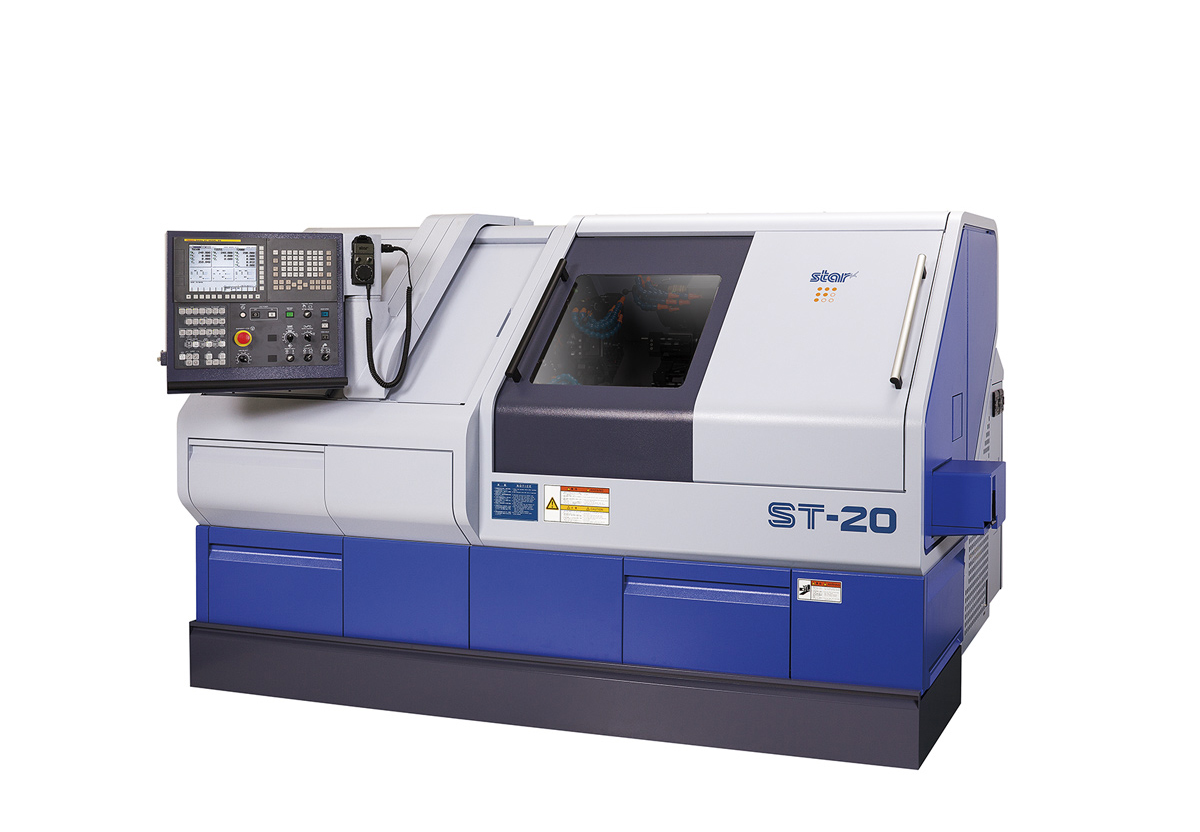

ST-20 CNC
Swiss-type Automatic Lathe
Machining with the highest specifications and functions that deliver high productivity and profitability.
learn more
- Simultaneous machining capability such as turning and milling by opposing twin turret tool posts drastically reduces machining time
- Main and sub spindles are both capable of the same level of machining which enables complex parts to be machined with incredibly short cycle times and to a high standard of quality
- Equipped with 3 turrets for ultra-high speed flexible machining
- Elaborate array of turret posts allow for a wide range of tooling configurations for seamless multi-processing

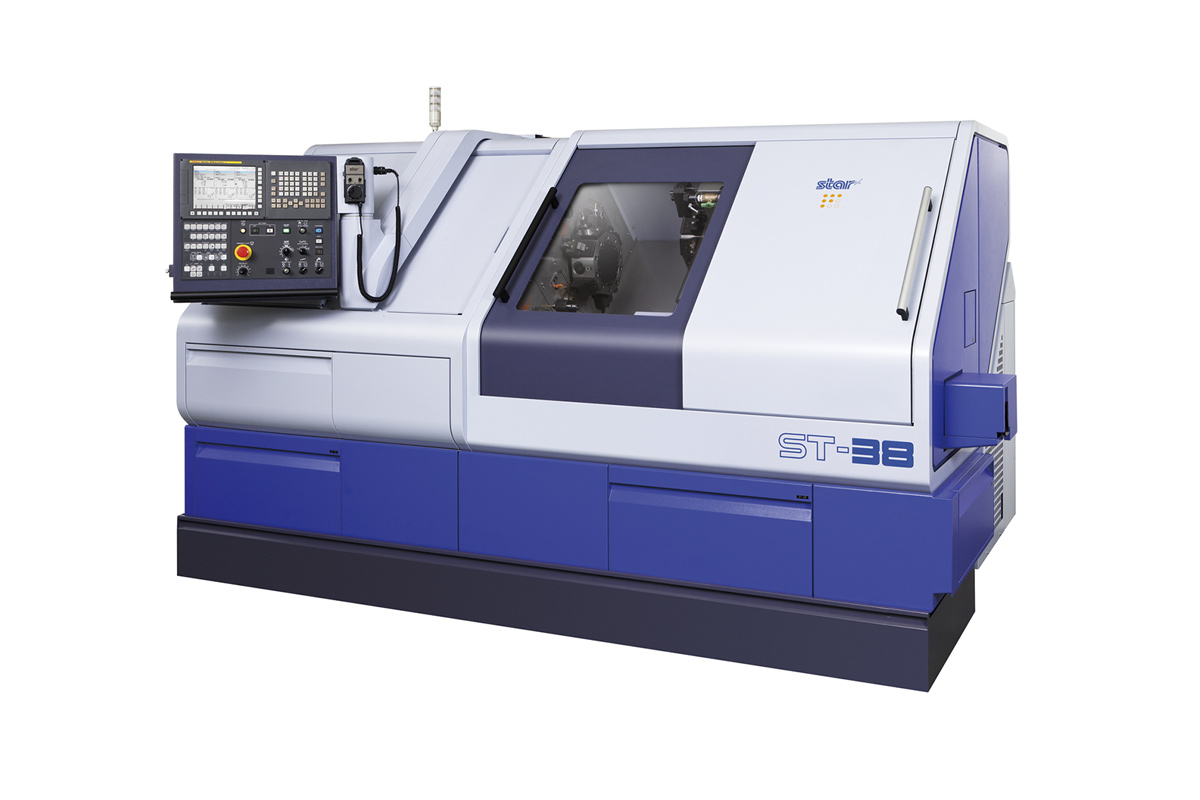

ST-38 CNC
Swiss-type Automatic Lathe
Triple turret design is ideally suited for complex machining of large diameter components for the medical, automotive and aviation industries
learn more
- Simultaneous machining achieved by opposed twin turret design tool post dramatically reduces machining time and independent
- Triple turrets with 10 stations each, reduce cycle time
- Deep hole drilling (max. 120mm) on front and rear ends of component parts
- Equipped with Star Motion Control System for higher accuracy and easier operability

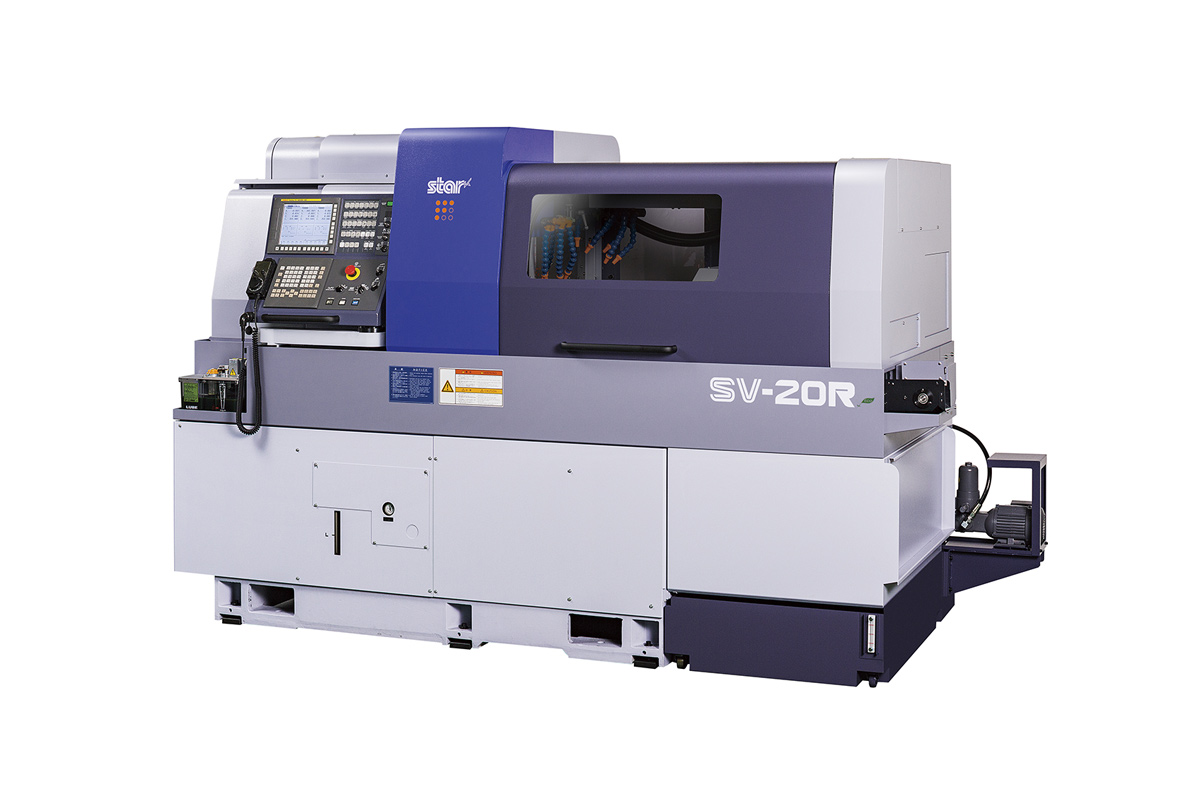

SV-20R CNC
Swiss-type Automatic Lathe
SV-20R delivers a wide range of machining operations for producing intricate and complicated parts for medical and aerospace industries.
learn more
- Multi-axis machine with multi-series control for high machine productivity
- Flexible tooling layouts for endless variations of complex machining
- “Super position mode” enables multiple tools to work simultaneously
- 8-spindle backworking unit with Y-axis control accommodates a variety of tools for overlapping operations
- Maximum machining diameter 20 mm
- Guide bush and Non-guide bush switching function
- Star Motion Control reduces idle time

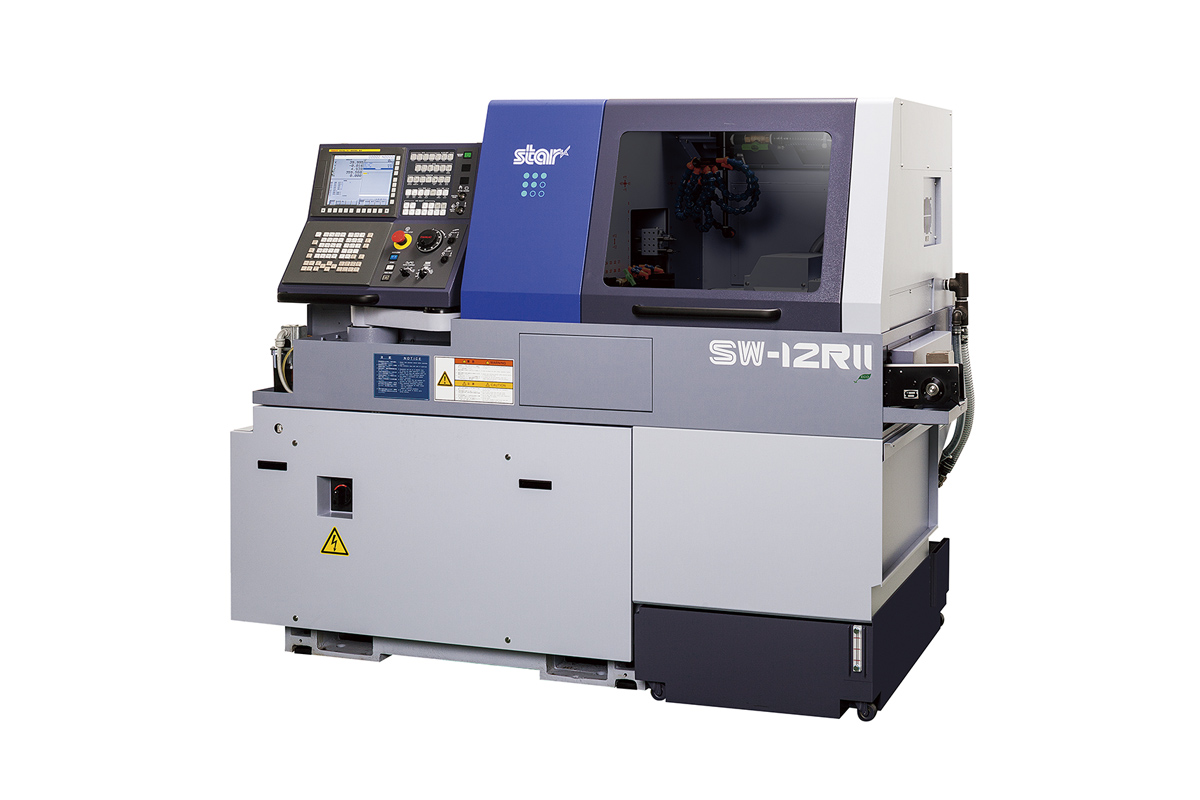

SW-12R II CNC
Swiss-type Automatic Lathe
Latest model in the 12mm diameter class which is designed with a variety of tooling to enable a broad range of complex machining.
learn more
- Independently controlled opposing gang-type tool post with 8-spindle unit reduces cycle times and changeover times
- 8-spindle unit with Y-axis control enables the most complex operations to be carried out independently
- Ability to switch from Guide Bush to Non-Guide Bush function makes the SW-12RII suitable for both short and long work
- Improved productivity, functionality, precision and accuracy for increased manufacturing possibilities in a variety of industries

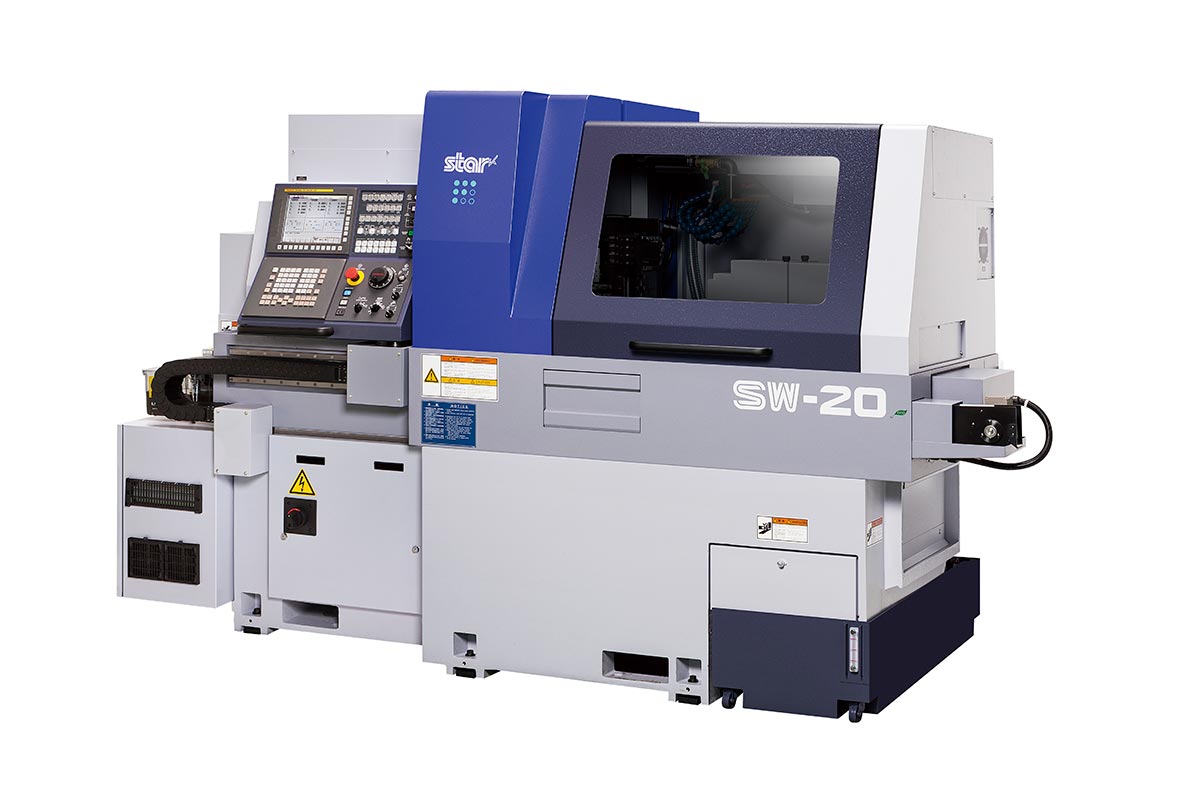

SW-20 CNC
Swiss-type Automatic Lathe
Advanced software improves both production output and profitability in machining complicated components
learn more
- Modular machine design flexibility greatly benefits the machining of small diameter parts
- Ability to switch between Guide Bush and Non Guide-Bush Modes improves machining efficiency
- Main spindle with 17 tool positions extends manufacturing possibilities
- Fully independent sub-spindle with driven tool capability increases the amount of overlapped operations that can be carried out

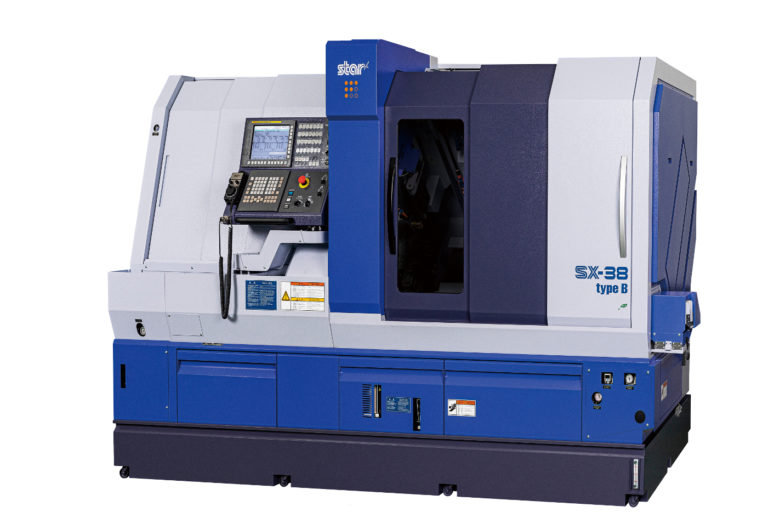

SX-38 Type A/B CNC
Swiss-type Automatic Lathe
The Star SX-38 Type A/B, a 12-axis compact Swiss-style machine with slant-bed construction, maximizes productivity for difficult-to-machine materials up to 42mm diameter.
learn more
- The capability to keep 80 tools resident with high horsepower motors means heavy metal removal rates and flexibility. B-axis surfacing with up to 135 degree travel handles up to 0.5″ diameter tooling. This high-functioning, large-diameter model – with gang-type and turret-type tool posts – serves the precision machining requirements demanded by the medical, automotive, and aviation industries.
